SAC 算法实战

在实战中，我们主要讲解 算法的第二个版本，即自动调节温度因子的版本。该版本的如图 所示，整个训练过程相对来说还是比较简洁的，只是需要额外定义一些网络，比如用来调节温度因子等。

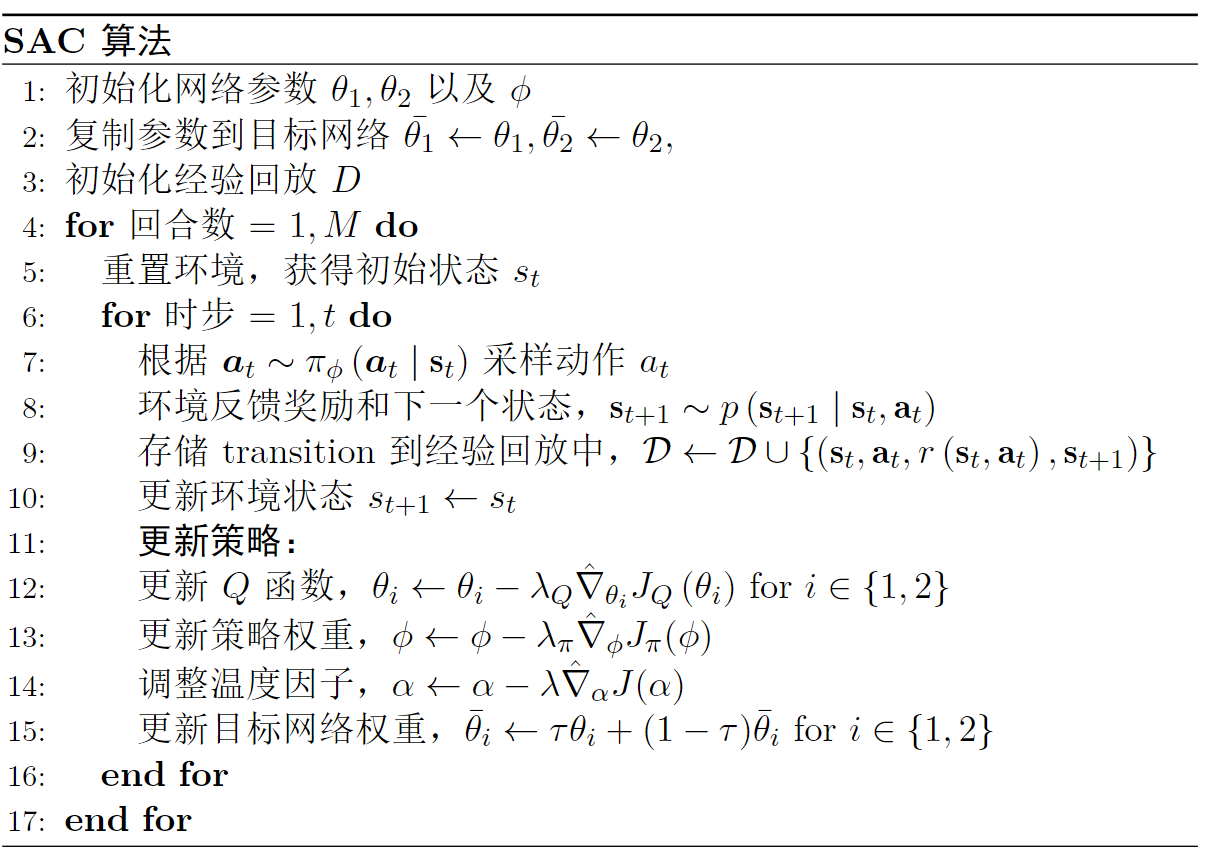

图 算法伪代码

定义模型

首先我们定义 和 ，即值网络和策略网络，跟 算法其实是一样的，如代码清单 所示。

代码清单 和 网络

class ValueNet(nn.Module):
    def __init__(self, state_dim, hidden_dim, init_w=3e-3):
        super(ValueNet, self).__init__()
        '''定义值网络
        '''
        self.linear1 = nn.Linear(state_dim, hidden_dim) # 输入层
        self.linear2 = nn.Linear(hidden_dim, hidden_dim) # 隐藏层
        self.linear3 = nn.Linear(hidden_dim, 1)

        self.linear3.weight.data.uniform_(-init_w, init_w) # 初始化权重
        self.linear3.bias.data.uniform_(-init_w, init_w)

    def forward(self, state):
        x = F.relu(self.linear1(state))
        x = F.relu(self.linear2(x))
        x = self.linear3(x)
        return x
class PolicyNet(nn.Module):
    def __init__(self, state_dim, action_dim, hidden_dim, init_w=3e-3, log_std_min=-20, log_std_max=2):
        super(PolicyNet, self).__init__()
        self.log_std_min = log_std_min
        self.log_std_max = log_std_max

        self.linear1 = nn.Linear(state_dim, hidden_dim)
        self.linear2 = nn.Linear(hidden_dim, hidden_dim)

        # 初始化权重
        self.mean_linear = nn.Linear(hidden_dim, action_dim)
        self.mean_linear.weight.data.uniform_(-init_w, init_w)
        self.mean_linear.bias.data.uniform_(-init_w, init_w)

        self.log_std_linear = nn.Linear(hidden_dim, action_dim)
        self.log_std_linear.weight.data.uniform_(-init_w, init_w)
        self.log_std_linear.bias.data.uniform_(-init_w, init_w)

    def forward(self, state):
        x = F.relu(self.linear1(state))
        x = F.relu(self.linear2(x))

        mean    = self.mean_linear(x)
        log_std = self.log_std_linear(x)
        log_std = torch.clamp(log_std, self.log_std_min, self.log_std_max)

        return mean, log_std

    def evaluate(self, state, epsilon=1e-6):
        mean, log_std = self.forward(state)
        std = log_std.exp()
        # 计算动作
        normal = Normal(mean, std)
        z = normal.sample()
        action = torch.tanh(z)
        # 计算动作概率
        log_prob = normal.log_prob(z) - torch.log(1 - action.pow(2) + epsilon)
        log_prob = log_prob.sum(-1, keepdim=True)

        return action, log_prob, z, mean, log_std

    def get_action(self, state):
        state = torch.FloatTensor(state).unsqueeze(0)
        mean, log_std = self.forward(state)
        std = log_std.exp()

        normal = Normal(mean, std)
        z      = normal.sample()
        action = torch.tanh(z)

        action  = action.detach().cpu().numpy()
        return action[0]

然后再额外定义一个 网络，如代码清单 所示。

代码清单 网络

class SoftQNet(nn.Module):
    def __init__(self, state_dim, action_dim, hidden_dim, init_w=3e-3):
        super(SoftQNet, self).__init__()
        '''定义Q网络，state_dim, action_dim, hidden_dim, init_w分别为状态维度、动作维度隐藏层维度和初始化权重
        '''
        self.linear1 = nn.Linear(state_dim + action_dim, hidden_dim)
        self.linear2 = nn.Linear(hidden_dim, hidden_dim)
        self.linear3 = nn.Linear(hidden_dim, 1)

        self.linear3.weight.data.uniform_(-init_w, init_w)
        self.linear3.bias.data.uniform_(-init_w, init_w)

    def forward(self, state, action):
        x = torch.cat([state, action], 1)
        x = F.relu(self.linear1(x))
        x = F.relu(self.linear2(x))
        x = self.linear3(x)
        return x
