Learning SGLang: an illustrated, step-by-step tour of an inference engine
Site: https://wilsonzheng0327.github.io/learning-sglang/
Source: https://github.com/WilsonZheng0327/learning-sglang
While working through the course I built an illustrated companion to it: a small site where each chapter is one animated visualization you click through. The captions are the narration; there is almost no other text. Every chapter ends on a question, and the next chapter is the answer, so by the end an engine's scheduler, memory manager, prefix cache, and process layout all read as the obvious response to a chain of "so what do we do about that?"
Roughly, chapters 1 to 4 cover the ground of the course's Part I and chapters 5 to 10 the ground of Part II. They are meant to be read alongside a chapter, not instead of it.
Chapters
| # | Chapter | Hook |
|---|---|---|
| 01 | Bare-minimum inference | One function, called in a loop. |
| 02 | Attention, per decode step | What a new token needs from the past. |
| 03 | KV cache | Keep k and v. Drop q. |
| 04 | Prefill vs decode | Two very different workloads. |
| 05 | Batching & continuous batching | Sharing a GPU between users. |
| 06 | The scheduler | Two lists, one GPU, one choice per step. |

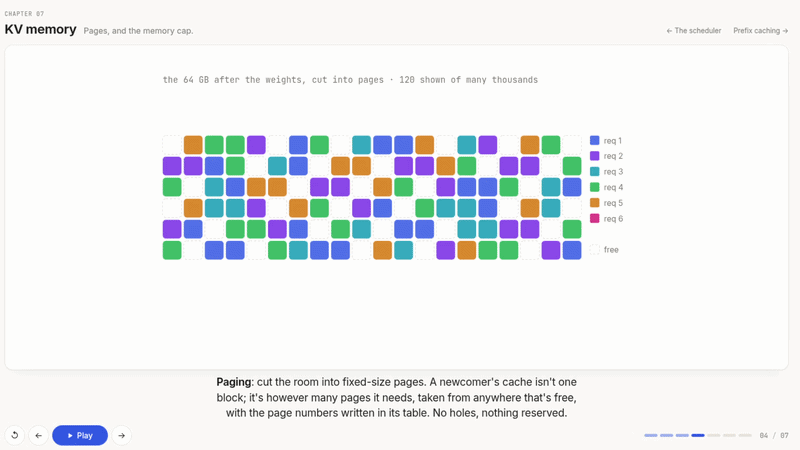

| 07 | KV memory | Pages, and the memory cap. |
| 08 | Prefix caching | Same beginning, one copy. |
| 09 | One request, end to end | From an HTTP POST to the GPU and back. |
| 10 | The scheduler's loop | One Req through one step. |
More chapters are in progress on the site, starting with what happens once the loop is correct but the step is still slow: CUDA graphs, attention backends, speculative decoding, and then scaling past one GPU.
How to read it
Open a chapter and press → to step, ← to go back, and space to let it play. The last step of each chapter offers the next one. There is no scrolling: one picture per chapter, filling the viewport.
How it is built
Astro with MDX for the pages, Svelte 5 for the visualizations, KaTeX for the math. Each visualization is a plain function of a step number: a small script of per-step states, rendered as SVG, with transitions between states. Written and drawn by Wilson Zheng.
License
This page is licensed under CC BY-NC-SA 4.0, the same as the course text.
