LM Studio LLM Deployment from Scratch (Ubuntu 24.04 + ROCm 7+) ​

This section explains how to deploy Gemma 4 on Ubuntu 24.04 using LM Studio + ROCm version llama.cpp, and provides performance examples for Gemma 4 E4B-it Q4_K_M.

Before starting this section, make sure you have completed the environment setup and correctly installed ROCm 7.1.0 (refer to env-prepare-ubuntu24-rocm7.md).

1. Using LM Studio (with ROCm Version llama.cpp Backend) ​

1.1 Download LM Studio AppImage ​

First, download the installer from the official website:

bash
https://lmstudio.ai/

Download the latest .AppImage file to your local machine.

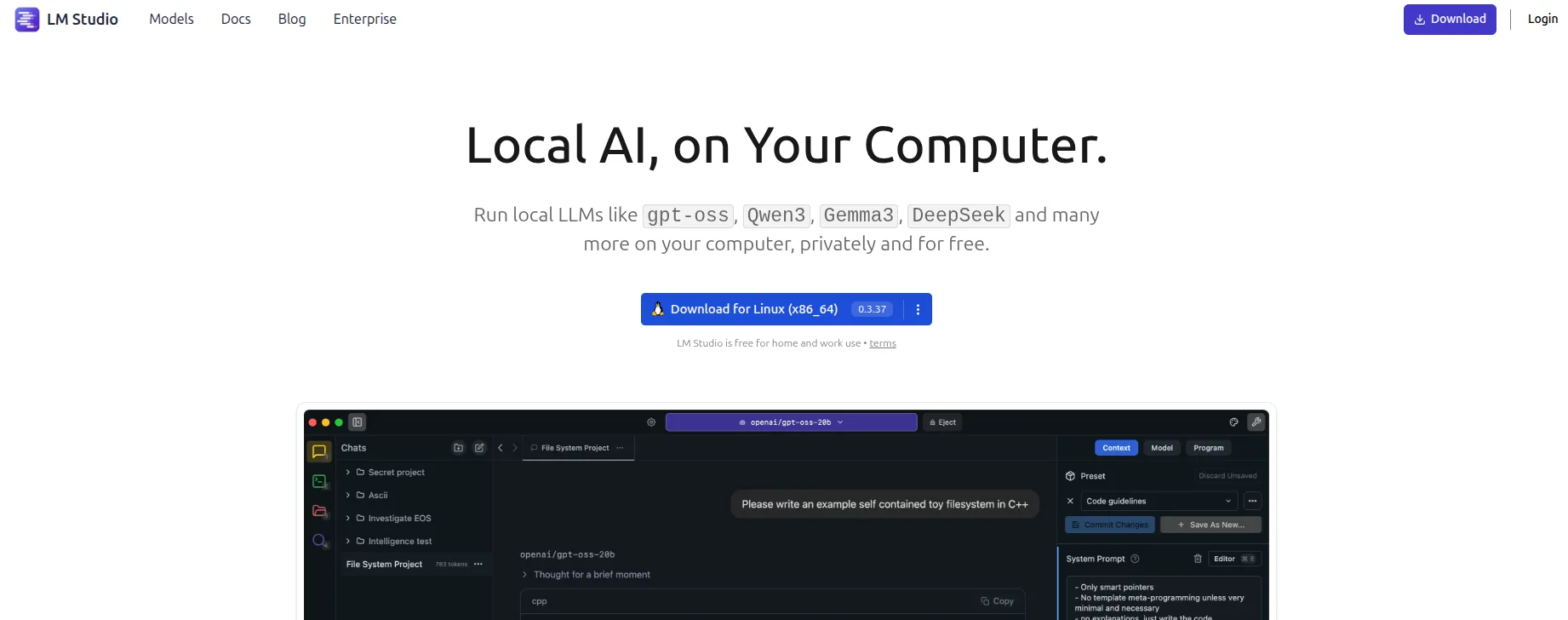

Screenshot:

1.2 Extract the AppImage ​

Extract the AppImage contents into the squashfs-root directory:

bash
chmod u+x LM-Studio-*.AppImage
./LM-Studio-*.AppImage --appimage-extract

1.3 Fix chrome-sandbox Permissions ​

Navigate to the squashfs-root directory and set the appropriate permissions for the chrome-sandbox file (this binary is required for the application to run securely):

bash
cd squashfs-root
sudo chown root:root chrome-sandbox
sudo chmod 4755 chrome-sandbox

1.4 Launch LM Studio ​

Start the LM Studio application from the current directory:

bash
./lm-studio

2. Install the ROCm Version llama.cpp Backend ​

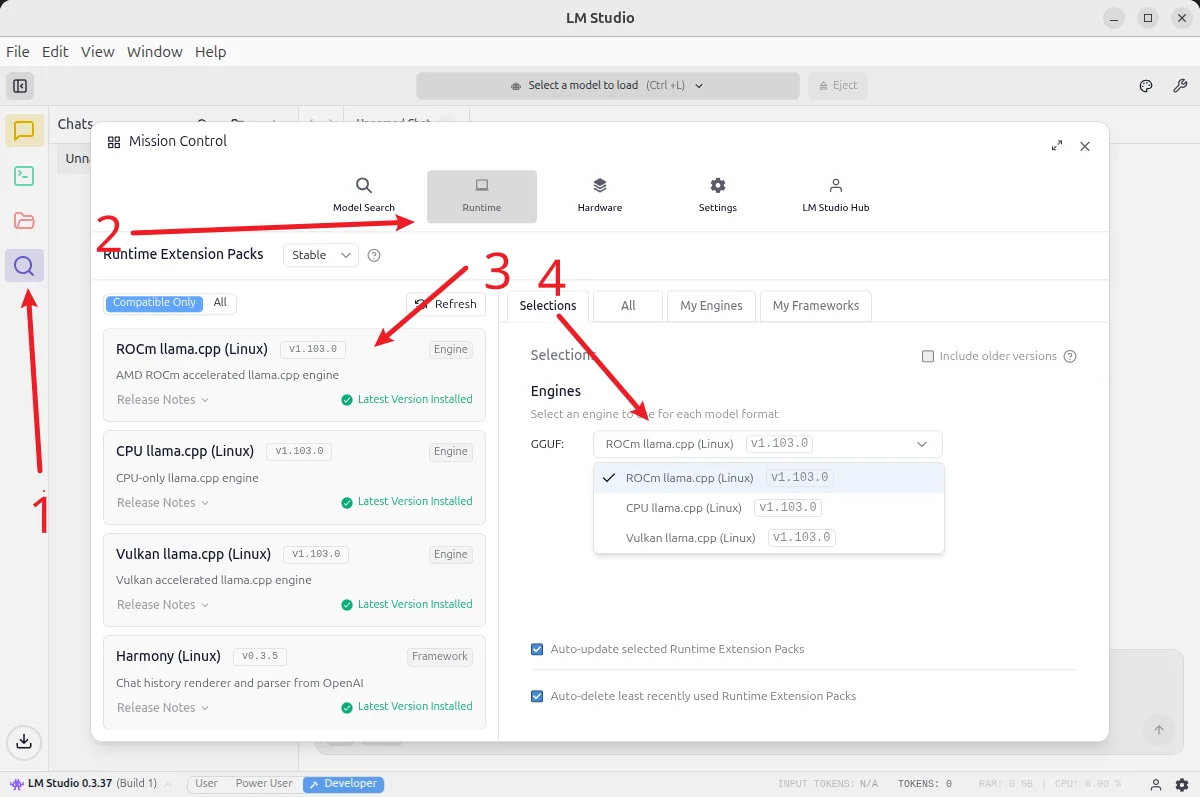

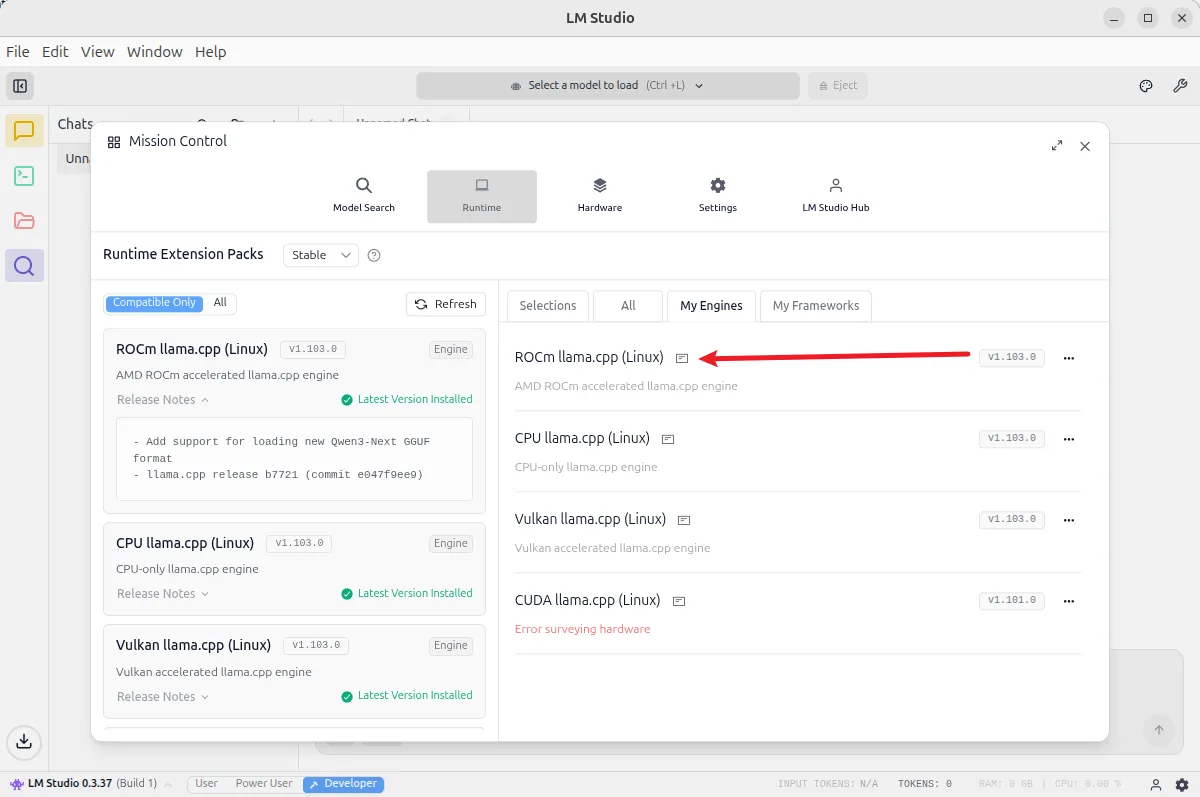

In LM Studio, select the ROCm version of the llama.cpp backend to install:

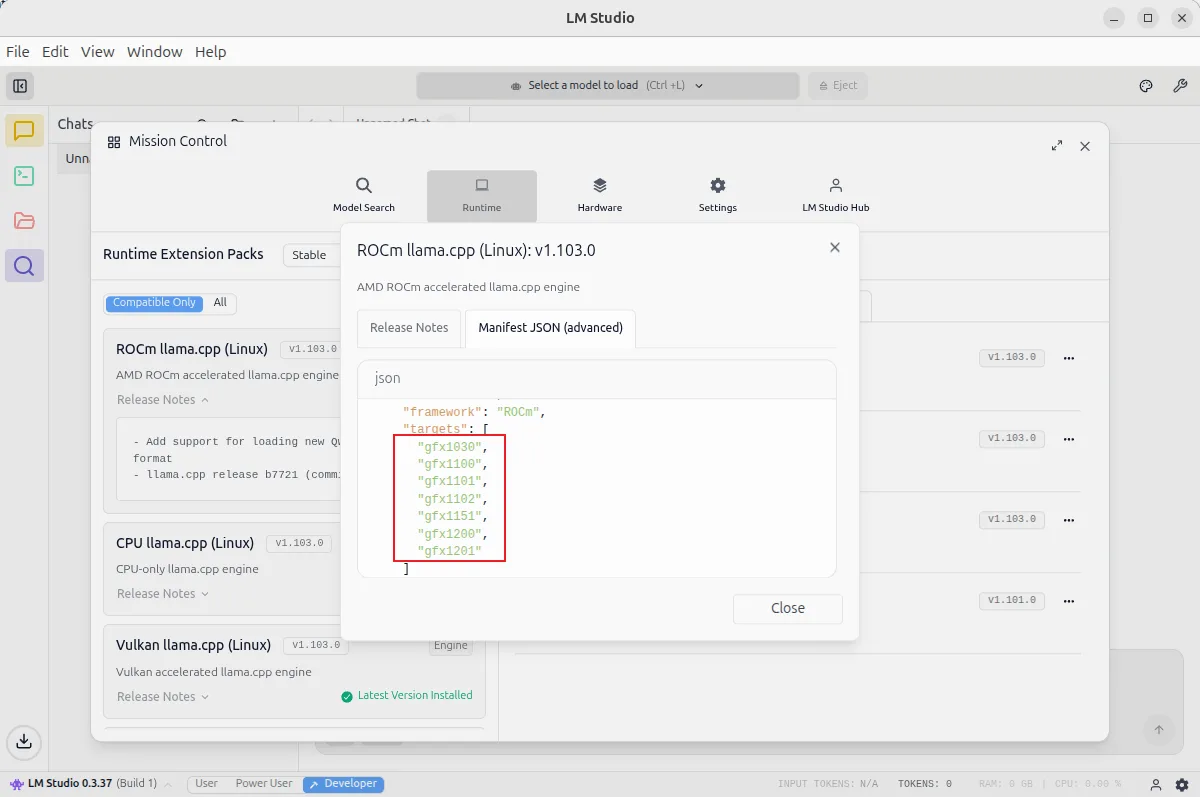

Note the supported architecture list for the ROCm version of llama.cpp currently provided by LM Studio (GPU architecture support status):

3. Load the Gemma 4 E4B-it Q4_K_M Model ​

In LM Studio's Discover page, search for the keyword:

gemma-4-E4B-it GGUF

Select and download a Q4_K_M quantized version from a trusted community source (e.g., bartowski/google_gemma-4-E4B-it-GGUF; check LM Studio's latest catalog for the most current options).

Tips:

  • Downloading Gemma series models for the first time requires accepting the model terms of use on Hugging Face and logging in / configuring the corresponding Token in LM Studio.
  • If you have more VRAM, you can switch to gemma-4-26B-A4B-it or gemma-4-31B-it GGUF quantized versions.

4. Gemma 4 E4B-it Q4_K_M Performance Example ​

Load the Gemma 4 E4B-it Q4_K_M model in LM Studio, set the context length to 4096 (Gemma 4 E4B natively supports 128K — you can gradually increase it based on your VRAM), and you're ready for chat and inference:

  • tokens/s depends on your actual hardware (Gemma 4 E4B activates only 4.5B effective parameters during inference, typically faster than comparable 8B models at the same Q4_K_M quantization)

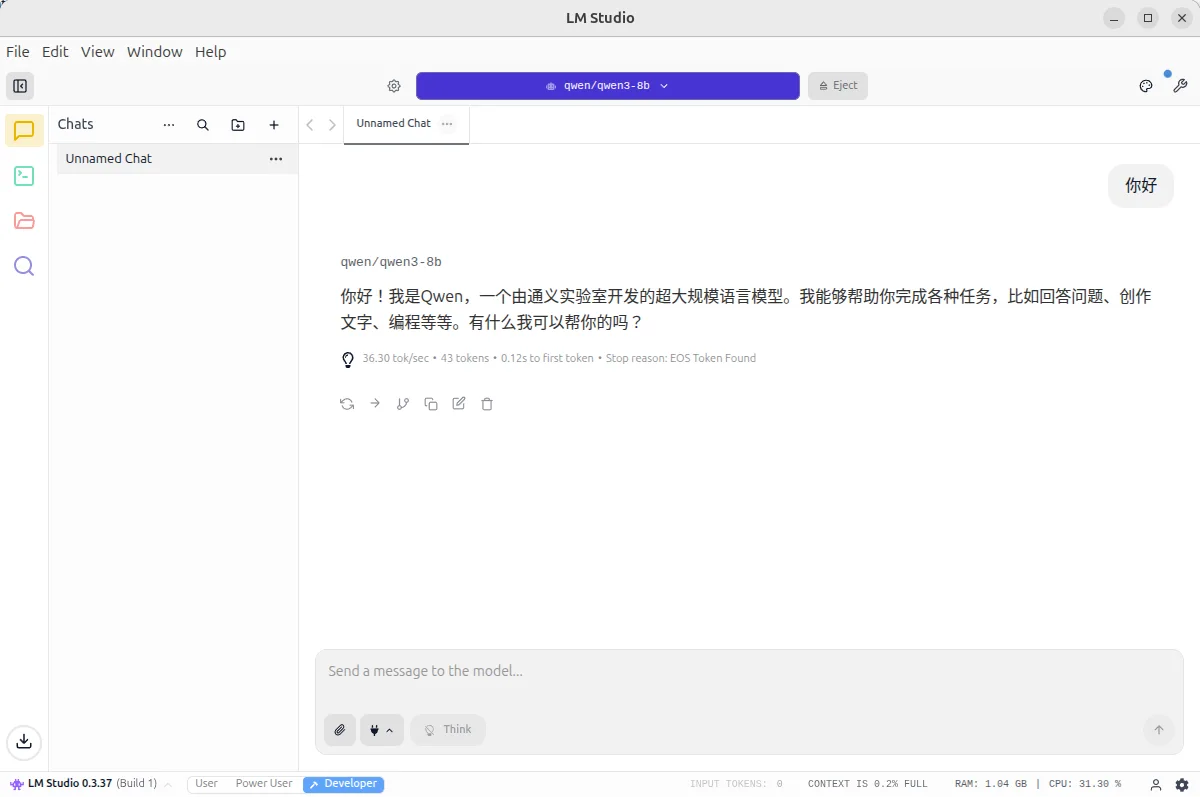

Screenshot example:

To experience Gemma 4's image / video / audio multimodal capabilities, use a Gemma 4 GGUF package in LM Studio that is labeled as supporting Vision / Multimodal (usually includes an mmproj projection file), then simply drag and drop images or audio into the chat window.
